Volume 52,Issue 8,2023 Table of Contents
2023, 52(8):2711-2720.
DOI: 10.12442/j.issn.1002-185X.20230054
Abstract:

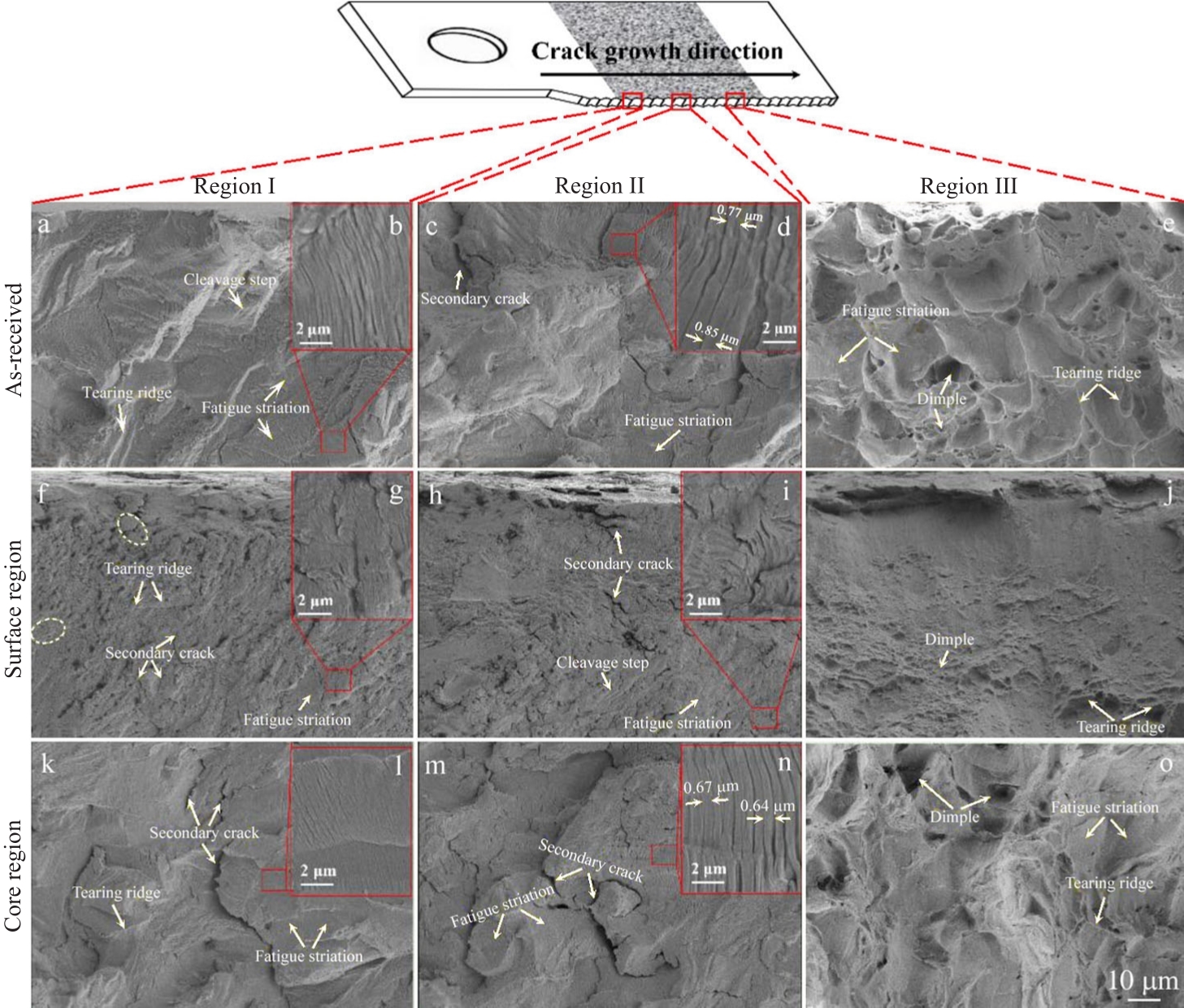

Double-side ultrasonic shot peening (USSP) was performed on a commercial-purity Zr plate with 2 mm in thickness. The effects of USSP on microstructure evolution and fatigue crack growth (FCG) behavior were investigated. Microstructure evolution was characterized by optical microscopy, laser confocal microscope, electron back-scatter diffraction, transmission electron microscope, and X-ray diffractometer. FCG tests were carried out using compact tension samples, the fracture morphology and crack growth path were analyzed accordingly. The results show that a refined surface gradient structure with compressive residual stress of about 250 μm in depth is formed after USSP treatment. The USSPed samples exhibit higher strength and surface roughness than the as-received samples. Notably, the fatigue crack growth life of USSP-8 min and USSP-12 min samples is increased by 28.1% and 50.9% compared to that of the as-received samples. The USSP treatment helps to improve the resistance to fatigue crack propagation, which in turn reduces the fatigue crack growth rate to a certain extent. The enhancement of the FCG performance can be ascribed to the combined effects of the compressive residual stress and the conspicuous grain refinement. Compressive residual stress enhances the crack closure effect and decreases the effective stress ratio. Meanwhile, grain refinement increases the fraction of grain boundary and decreases the cyclic plastic zone size, which is beneficial for crack growth resistance.
Double-side ultrasonic shot peening (USSP) was performed on a commercial-purity Zr plate with 2 mm in thickness. The effects of USSP on microstructure evolution and fatigue crack growth (FCG) behavior were investigated. Microstructure evolution was characterized by optical microscopy, laser confocal microscope, electron back-scatter diffraction, transmission electron microscope, and X-ray diffractometer. FCG tests were carried out using compact tension samples, the fracture morphology and crack growth path were analyzed accordingly. The results show that a refined surface gradient structure with compressive residual stress of about 250 μm in depth is formed after USSP treatment. The USSPed samples exhibit higher strength and surface roughness than the as-received samples. Notably, the fatigue crack growth life of USSP-8 min and USSP-12 min samples is increased by 28.1% and 50.9% compared to that of the as-received samples. The USSP treatment helps to improve the resistance to fatigue crack propagation, which in turn reduces the fatigue crack growth rate to a certain extent. The enhancement of the FCG performance can be ascribed to the combined effects of the compressive residual stress and the conspicuous grain refinement. Compressive residual stress enhances the crack closure effect and decreases the effective stress ratio. Meanwhile, grain refinement increases the fraction of grain boundary and decreases the cyclic plastic zone size, which is beneficial for crack growth resistance.
He Chaojun
,
Hu Ping
,
Xing Hairui
,
Yang Fan
,
Zhang Xiangyang
,
Lin Xiaohui
,
Hua Xingjiang
,
Bai Run
,
Zhang Wen
,
Wang Kuaishe
2023, 52(8):2746-2756.
DOI: 10.12442/j.issn.1002-185X.20230059
Abstract:
Mo-Re alloys have excellent mechanical and processing properties due to their high-temperature resistance, corrosion resistance, and plasticity. To further understand the microstructure and room temperature tensile properties of rolled Mo-14%Re alloy, the microstructure and fracture morphology of the Mo-14%Re alloy were investigated by scanning electron microscopy (SEM) and high-resolution electron backscatter diffraction (EBSD). Channel 5 software was used to analyze the microstructure evolution of rolled Mo-14%Re alloy at different annealing temperatures. With the increase in annealing temperature, the Schmidt factor of the Mo matrix phase and ReO3 phase decreases gradually. The texture intensity increases rapidly, and the crystal orientation intensity of the polarography increases from 6.51 to 10.18. The initial recrystallization of the rolled Mo-14%Re alloy occurs at 1100 °C, at which the uniform precipitation of the earth-rich ReO3 phase in the alloy leads to uniform stress distribution during tensile process, the grains of Mo matrix phase and ReO3 phase show obvious ＜101＞ crystal orientation and ＜111＞ crystal orientation, and the grain boundaries of ReO3 phase are mainly high-angle grain boundaries, which makes the elongation after fracture reach the maximum of 33.5%. The tensile fracture has the highest number of dimples and the largest size. Besides, the formation, aggregation, growth, and crack propagation of micropores during fracture were studied.
Mo-Re alloys have excellent mechanical and processing properties due to their high-temperature resistance, corrosion resistance, and plasticity. To further understand the microstructure and room temperature tensile properties of rolled Mo-14%Re alloy, the microstructure and fracture morphology of the Mo-14%Re alloy were investigated by scanning electron microscopy (SEM) and high-resolution electron backscatter diffraction (EBSD). Channel 5 software was used to analyze the microstructure evolution of rolled Mo-14%Re alloy at different annealing temperatures. With the increase in annealing temperature, the Schmidt factor of the Mo matrix phase and ReO3 phase decreases gradually. The texture intensity increases rapidly, and the crystal orientation intensity of the polarography increases from 6.51 to 10.18. The initial recrystallization of the rolled Mo-14%Re alloy occurs at 1100 °C, at which the uniform precipitation of the earth-rich ReO3 phase in the alloy leads to uniform stress distribution during tensile process, the grains of Mo matrix phase and ReO3 phase show obvious ＜101＞ crystal orientation and ＜111＞ crystal orientation, and the grain boundaries of ReO3 phase are mainly high-angle grain boundaries, which makes the elongation after fracture reach the maximum of 33.5%. The tensile fracture has the highest number of dimples and the largest size. Besides, the formation, aggregation, growth, and crack propagation of micropores during fracture were studied.
2023, 52(8):2783-2790.
DOI: 10.12442/j.issn.1002-185X.20220575
Abstract:
The W-Ni alloy specimens were prepared by laser powder bed fusion (LPBF) using 93W-7Ni pre-mixed powder feedstock. The influence of different linear energy densities (LEDs) on relative density, microstructure and microhardness of LPBFed W-Ni alloy specimens. The results show that the defects of the W-Ni alloy specimens are mainly irregular pores with no obvious cracks and the irregular pores can be reduced by increasing the LED. The W-Ni alloy specimens with a maximum relative density of 98.04% can be prepared by using LED of 1.5J/mm. The microstructure of LPBFed W-Ni alloy specimens is mainly composed of W particles and Ni-W matrix phase, accompanied by a large number of fine dendritic/granular W grains. The LPBFed W-Ni specimens have high microhardness with a maximum of 529.83HV0.5, which was not significantly influenced by LED.
The W-Ni alloy specimens were prepared by laser powder bed fusion (LPBF) using 93W-7Ni pre-mixed powder feedstock. The influence of different linear energy densities (LEDs) on relative density, microstructure and microhardness of LPBFed W-Ni alloy specimens. The results show that the defects of the W-Ni alloy specimens are mainly irregular pores with no obvious cracks and the irregular pores can be reduced by increasing the LED. The W-Ni alloy specimens with a maximum relative density of 98.04% can be prepared by using LED of 1.5J/mm. The microstructure of LPBFed W-Ni alloy specimens is mainly composed of W particles and Ni-W matrix phase, accompanied by a large number of fine dendritic/granular W grains. The LPBFed W-Ni specimens have high microhardness with a maximum of 529.83HV0.5, which was not significantly influenced by LED.
4 Study on Strain-compensated Physical Constitutive Relation of Laves Phase NbCr2/Nb Dual-phase Alloy
2023, 52(8):2835-2843.
DOI: 10.12442/j.issn.1002-185X.20220630
Abstract:
The Laves phase NbCr2/Nb dual-phase alloy has the potential of being used as a new high-temperature structural material due to its excellent high-temperature mechanical properties. It is known that the flow stress constitutive relationship reveals the hot deformation behavior of an alloy. In this paper, the strain-compensated physical constitutive relationship of Laves phase NbCr2/Nb dual-phase alloy with consideration of the effect of deformation temperature on the Young"s modulus and self-diffusion coefficient of the alloy is explored for the first time based on its isothermal constant strain rate compression experiment data at temperature of 1000-1200 °C and strain rate of 0.001-0.1 s-1. The results show that the correlation coefficient (R) and the average absolute relative error (AARE) of the strain-compensated physical constitutive relationship based on the creep index n=5 are 0.974 and 59.3% respectively, indicating that this physical constitutive model is not accurate for characterizing the flow stress behavior of the alloy. Whereas the R and the AARE of the strain-compensated physical constitutive relationship based on the variable of creep index n are 0.984 and 10.6% respectively, showing that this physical constitutive model can satisfactorily characterize the flow stress behavior of the alloy and the flow stress prediction accuracy of the physical constitutive model is higher than the traditional Arrhenius constitutive model.
The Laves phase NbCr2/Nb dual-phase alloy has the potential of being used as a new high-temperature structural material due to its excellent high-temperature mechanical properties. It is known that the flow stress constitutive relationship reveals the hot deformation behavior of an alloy. In this paper, the strain-compensated physical constitutive relationship of Laves phase NbCr2/Nb dual-phase alloy with consideration of the effect of deformation temperature on the Young"s modulus and self-diffusion coefficient of the alloy is explored for the first time based on its isothermal constant strain rate compression experiment data at temperature of 1000-1200 °C and strain rate of 0.001-0.1 s-1. The results show that the correlation coefficient (R) and the average absolute relative error (AARE) of the strain-compensated physical constitutive relationship based on the creep index n=5 are 0.974 and 59.3% respectively, indicating that this physical constitutive model is not accurate for characterizing the flow stress behavior of the alloy. Whereas the R and the AARE of the strain-compensated physical constitutive relationship based on the variable of creep index n are 0.984 and 10.6% respectively, showing that this physical constitutive model can satisfactorily characterize the flow stress behavior of the alloy and the flow stress prediction accuracy of the physical constitutive model is higher than the traditional Arrhenius constitutive model.
2023, 52(8):2844-2850.
DOI: 10.12442/j.issn.1002-185X.20220631
Abstract:
In order to obtain high quality W/CuCrZr composites, the W/CuCrZr composite plates with dovetail groove structure were fabricated by vacuum melting and casting. The microstructure characteristics and mechanical properties of W/CuCrZr joining interface were systematically analyzed by optical microscopy, scanning electron microscopy coupled with elemtental analysis, hardness tester and other equipment. The results show that the joining interface of W/CuCrZr composite prepared by melting and casting under vacuum conditions of 10-4 Pa and heating temperature of 1100~1200℃ presents flat and straight structure, which is tightly bonded without obvious defects. At the joining interface, the phenomenon of elemental interdiffusion occurred and formed a banded melting diffusion layer with the width of about 6~8μm. The Vickers hardness on the tungsten side of the W/CuCrZr composite plate is improved compared with the base material，while the Vickers hardness on CuCrZr side is lower than that of the base metal.
In order to obtain high quality W/CuCrZr composites, the W/CuCrZr composite plates with dovetail groove structure were fabricated by vacuum melting and casting. The microstructure characteristics and mechanical properties of W/CuCrZr joining interface were systematically analyzed by optical microscopy, scanning electron microscopy coupled with elemtental analysis, hardness tester and other equipment. The results show that the joining interface of W/CuCrZr composite prepared by melting and casting under vacuum conditions of 10-4 Pa and heating temperature of 1100~1200℃ presents flat and straight structure, which is tightly bonded without obvious defects. At the joining interface, the phenomenon of elemental interdiffusion occurred and formed a banded melting diffusion layer with the width of about 6~8μm. The Vickers hardness on the tungsten side of the W/CuCrZr composite plate is improved compared with the base material，while the Vickers hardness on CuCrZr side is lower than that of the base metal.
2023, 52(8):2869-2875.
DOI: 10.12442/j.issn.1002-185X.20220642
Abstract:

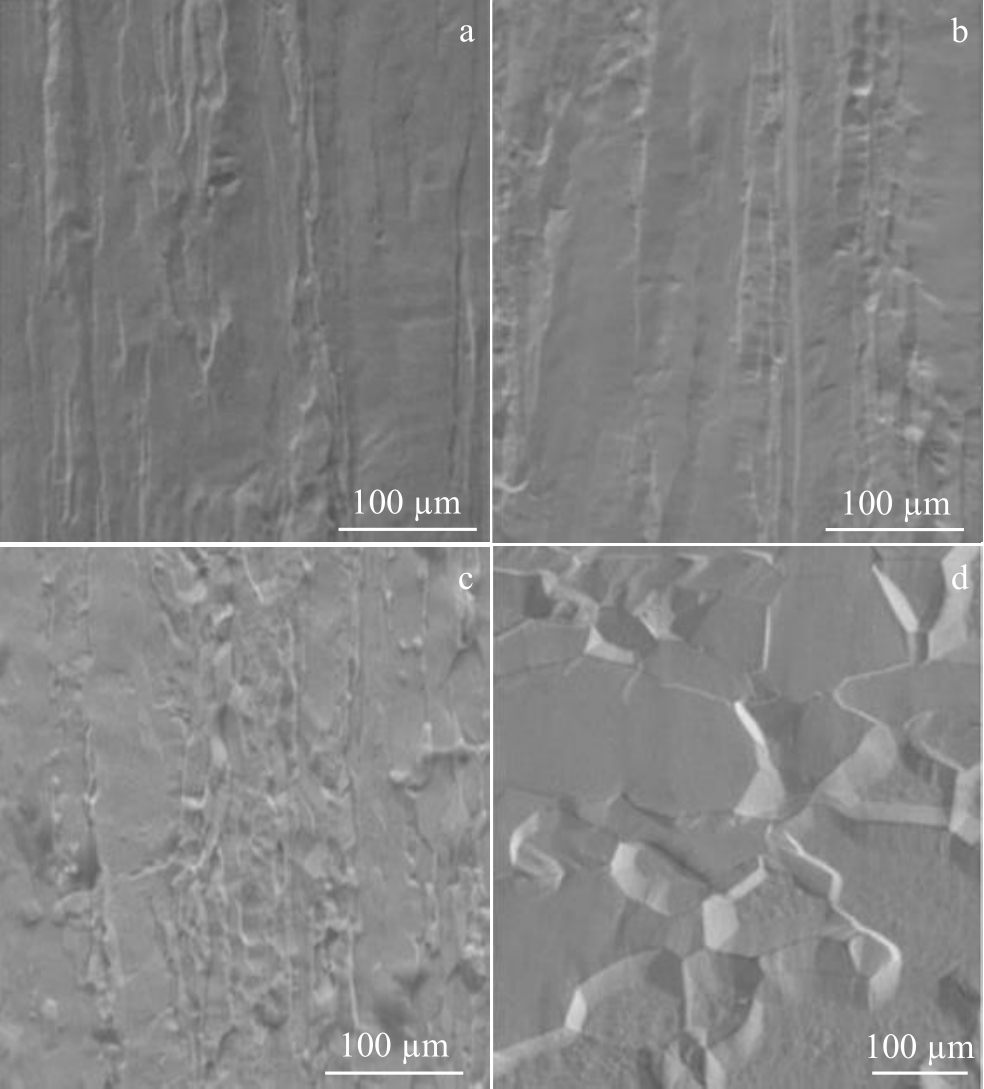

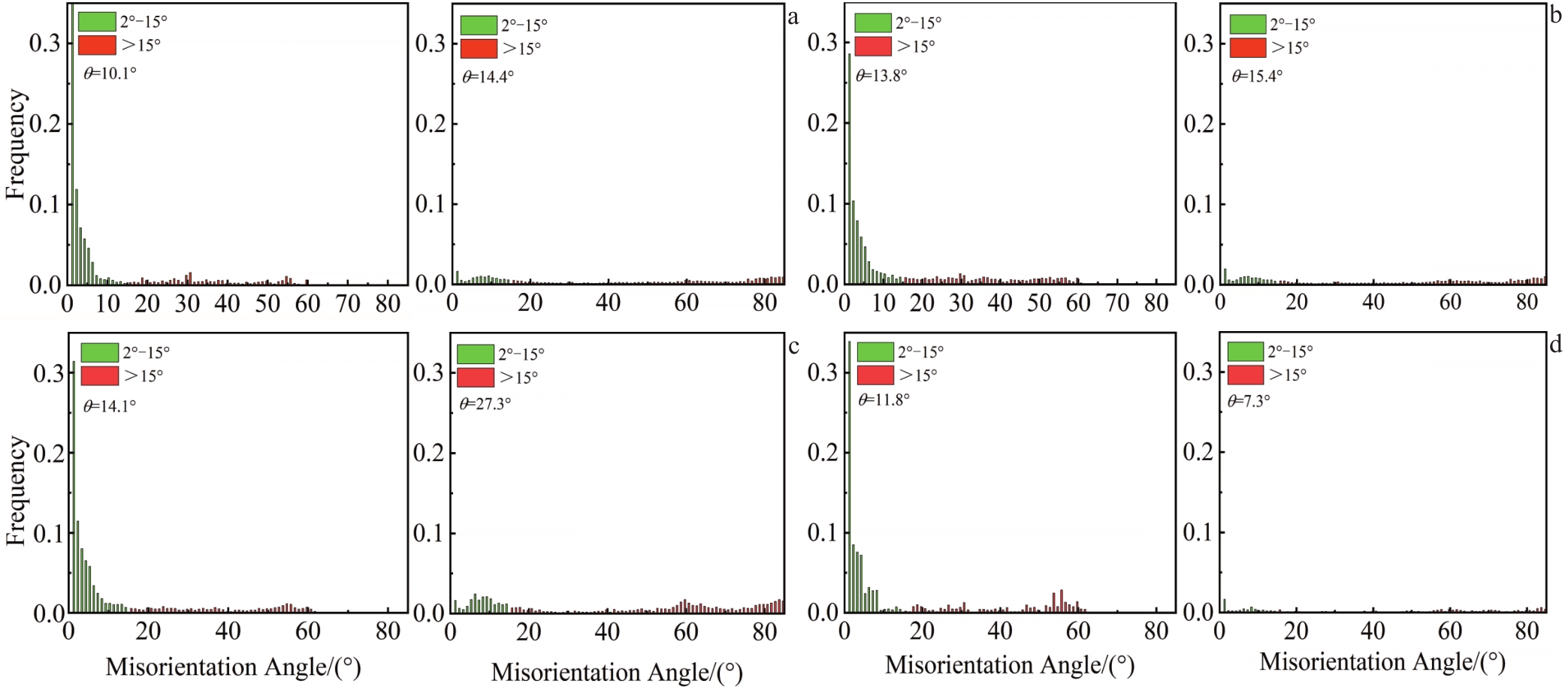

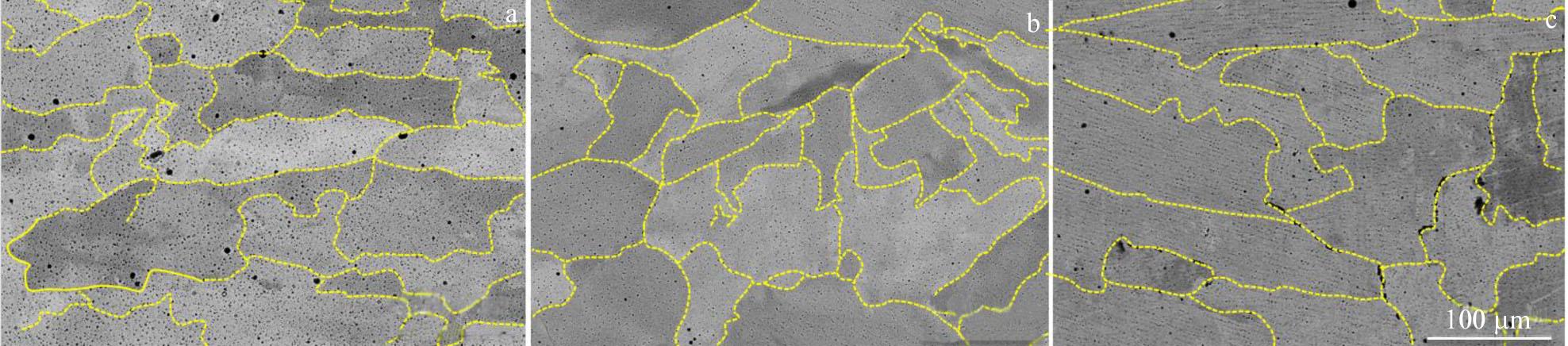

In this work, the high-purity tantalum after cold deformation is annealed at different temperatures (850~1050℃). The regularity of microstructure and texture evolution, the dependence of recrystallized nucleation and orientation, and the effect of recrystallized structure on its mechanical behavior were studied after annealing. The results show that the cold-deformed microstructure is the fibrous structure with {100} and {111} orientations, which is dominated by the α-fibre of ()[] component. After annealing, the microstructure of high-purity tantalum is in the recovery stage (850°C), complete recrystallization (950°C) and grain growth stage (1050°C). With increase of annealing temperature, the α-fibre gradually weakened and then the γ-fibre gradually formed, especially the α-fibre is disappeared completely after recrystallization. The yield strength and strain hardening ability decreased with the increase of annealing temperature, and the plasticity was significantly improved, especially the uniform elongation reached 17.85% after recrystallization. When the annealing temperature is increased to 1050°C, the intergranular fracture of the secondary recrystallized grains is prone to occur, resulting in poor mechanical properties.
In this work, the high-purity tantalum after cold deformation is annealed at different temperatures (850~1050℃). The regularity of microstructure and texture evolution, the dependence of recrystallized nucleation and orientation, and the effect of recrystallized structure on its mechanical behavior were studied after annealing. The results show that the cold-deformed microstructure is the fibrous structure with {100} and {111} orientations, which is dominated by the α-fibre of ()[] component. After annealing, the microstructure of high-purity tantalum is in the recovery stage (850°C), complete recrystallization (950°C) and grain growth stage (1050°C). With increase of annealing temperature, the α-fibre gradually weakened and then the γ-fibre gradually formed, especially the α-fibre is disappeared completely after recrystallization. The yield strength and strain hardening ability decreased with the increase of annealing temperature, and the plasticity was significantly improved, especially the uniform elongation reached 17.85% after recrystallization. When the annealing temperature is increased to 1050°C, the intergranular fracture of the secondary recrystallized grains is prone to occur, resulting in poor mechanical properties.
Mingyan Wei
,
Penghui Lei
,
Ping Zhang
,
Yunpeng Wang
,
Lu Wu
,
Zheng Wang
,
Xiaoyong Wu
,
Chengyang Lu
2023, 52(8):2985-2992.
DOI: 10.12442/j.issn.1002-185X.20220959
Abstract:
Coating the surface of zirconium alloy is an important way to improve the accident tolerance capability for nuclear fuel cladding after the Fukushima nuclear power plant accident. Transmission electron microscopy (TEM) samples of the irradiated N36 alloy with Nb coating were prepared by focusing ion beam (FIB). Bubble evolution during in-situ heating in the irradiated Nb-coated N36 alloy samples was investigated by in-situ TEM. The results show that the interface has a strong effect on bubble growth during the annealing process. The bubbles near the interface were captured and transported by the interface, which leads to the growth rate of the bubbles near the interface is lower than those away from the interface. The analysis of elements after annealing indicates that both irradiation and heating can increase the diffusion distance of the elements between coating and matrix, the diffusion during irradiation is mainly caused by the thermal spike diffusion mechanism. The diffusion of elements is beneficial to improve the bonding properties of the coating and provide certain corrosion resistance for N36 alloy.
Coating the surface of zirconium alloy is an important way to improve the accident tolerance capability for nuclear fuel cladding after the Fukushima nuclear power plant accident. Transmission electron microscopy (TEM) samples of the irradiated N36 alloy with Nb coating were prepared by focusing ion beam (FIB). Bubble evolution during in-situ heating in the irradiated Nb-coated N36 alloy samples was investigated by in-situ TEM. The results show that the interface has a strong effect on bubble growth during the annealing process. The bubbles near the interface were captured and transported by the interface, which leads to the growth rate of the bubbles near the interface is lower than those away from the interface. The analysis of elements after annealing indicates that both irradiation and heating can increase the diffusion distance of the elements between coating and matrix, the diffusion during irradiation is mainly caused by the thermal spike diffusion mechanism. The diffusion of elements is beneficial to improve the bonding properties of the coating and provide certain corrosion resistance for N36 alloy.
2023, 52(8):2721-2731.
DOI: 10.12442/j.issn.1002-185X.20220921
Abstract:

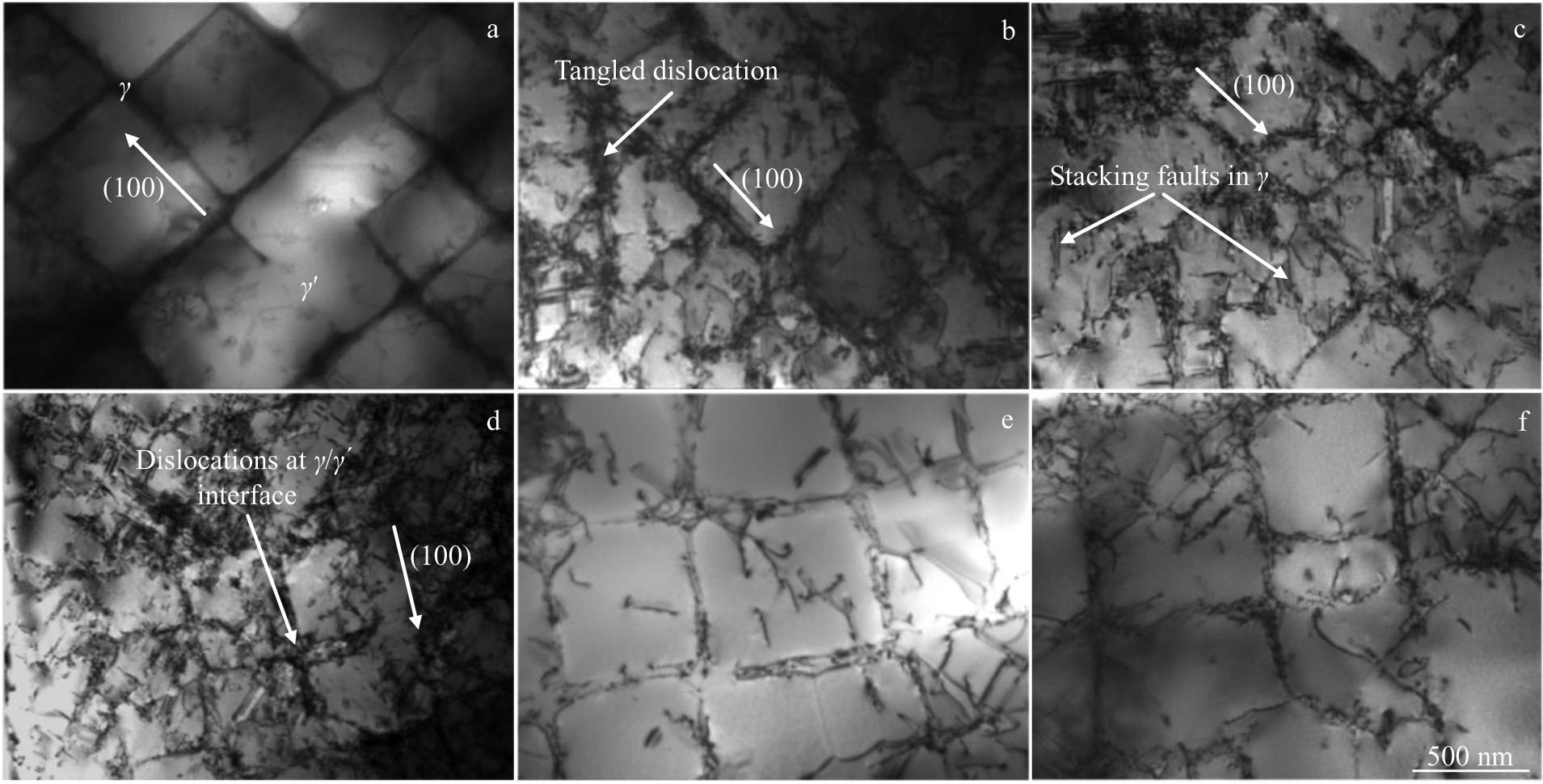

Ni-based single-crystal (SC) superalloys were treated by laser shock peening (LSP) and then exposed at 750 and 850 °C for 2 h. The electrochemical corrosion behavior of the as-obtained specimens was investigated in 3.5wt% NaCl solution. The results show an increase in the corrosion resistance of SC alloy treated by LSP; it is related to the compressive residual stresses (CRS) and significantly different dislocation structures in γ/γ′ phases. The non-uniformly distributed dislocations in γ/γ′ phases raise the two-phase misfit. The electrochemical corrosion tests of LSP-treated specimens after heat exposure indicate that CRS and two-phase misfit are the two major factors influencing the corrosion resistance of SC alloys. CRS can enhance the corrosion resistance while the two-phase misfit deteriorates the corrosion resistance of SC alloys. In addition, the improved corrosion resistance of SC superalloys is linked to the formation of Ta2O5 and WO3 oxides.
Ni-based single-crystal (SC) superalloys were treated by laser shock peening (LSP) and then exposed at 750 and 850 °C for 2 h. The electrochemical corrosion behavior of the as-obtained specimens was investigated in 3.5wt% NaCl solution. The results show an increase in the corrosion resistance of SC alloy treated by LSP; it is related to the compressive residual stresses (CRS) and significantly different dislocation structures in γ/γ′ phases. The non-uniformly distributed dislocations in γ/γ′ phases raise the two-phase misfit. The electrochemical corrosion tests of LSP-treated specimens after heat exposure indicate that CRS and two-phase misfit are the two major factors influencing the corrosion resistance of SC alloys. CRS can enhance the corrosion resistance while the two-phase misfit deteriorates the corrosion resistance of SC alloys. In addition, the improved corrosion resistance of SC superalloys is linked to the formation of Ta2O5 and WO3 oxides.
2023, 52(8):2851-2858.
DOI: 10.12442/j.issn.1002-185X.20220634
Abstract:
In this paper, series experiments were carried under different fatigue load spectrum for different solution annealing treated GH4720Li alloy. The results show that when the solution temperature is between 1080 °C and 1120 °C, the volume fraction of primary γ′ phase in the alloy is high, and the size of the near spherical tertiary γ′ phase gradually grows, and the grain structure is fine and uniform. The dislocation slip mainly cuts and bypasses the spherical γ′ phase and leaves a small slip band, indicating that the γ′ precipitates can effectively hinder the expansion of the slip band, the alloy has good fatigue performance. When the solution temperature is rise to 1140 °C, the primary γ′ phase dissolves unevenly, inducing the obvious mixed grain size distribution, and the morphology of tertiary γ′ phase gradually transforms into square shape. The size of parallel slip bands increases obviously, and the internal deformation of the material has occurred to a large extent, and the fatigue resistance of the material decreases. When the solution treated temperature is over the γ′ phase transformation point, such as at 1180 °C, the γ′ phase completely dissolves, and resulting in the coarse grain structure.The slip bands cross each other and pass through the grain boundary, which seriously reduces the fatigue resistance of the alloy.
In this paper, series experiments were carried under different fatigue load spectrum for different solution annealing treated GH4720Li alloy. The results show that when the solution temperature is between 1080 °C and 1120 °C, the volume fraction of primary γ′ phase in the alloy is high, and the size of the near spherical tertiary γ′ phase gradually grows, and the grain structure is fine and uniform. The dislocation slip mainly cuts and bypasses the spherical γ′ phase and leaves a small slip band, indicating that the γ′ precipitates can effectively hinder the expansion of the slip band, the alloy has good fatigue performance. When the solution temperature is rise to 1140 °C, the primary γ′ phase dissolves unevenly, inducing the obvious mixed grain size distribution, and the morphology of tertiary γ′ phase gradually transforms into square shape. The size of parallel slip bands increases obviously, and the internal deformation of the material has occurred to a large extent, and the fatigue resistance of the material decreases. When the solution treated temperature is over the γ′ phase transformation point, such as at 1180 °C, the γ′ phase completely dissolves, and resulting in the coarse grain structure.The slip bands cross each other and pass through the grain boundary, which seriously reduces the fatigue resistance of the alloy.
2023, 52(8):2859-2868.
DOI: 10.12442/j.issn.1002-185X.20220648
Abstract:

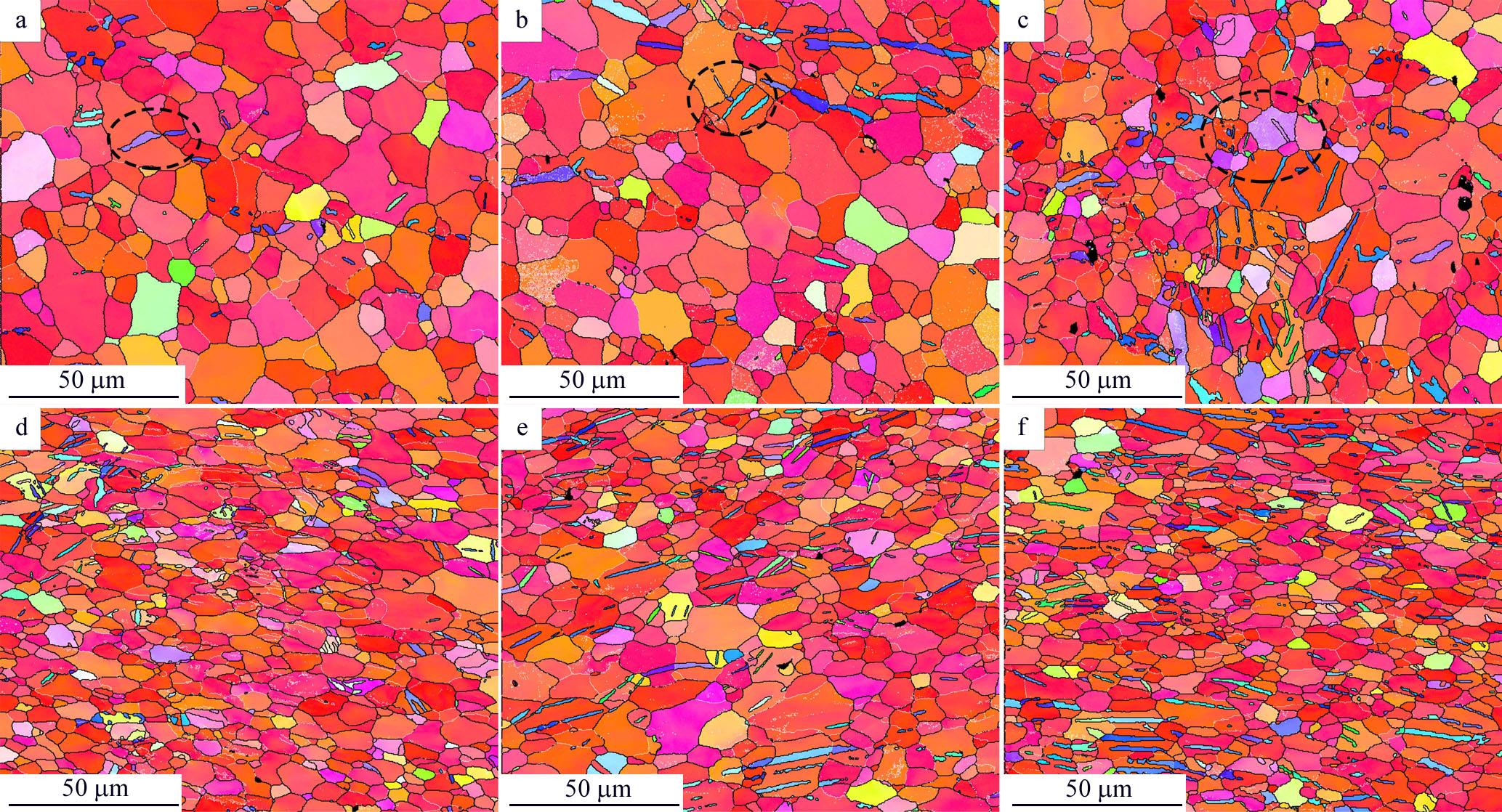

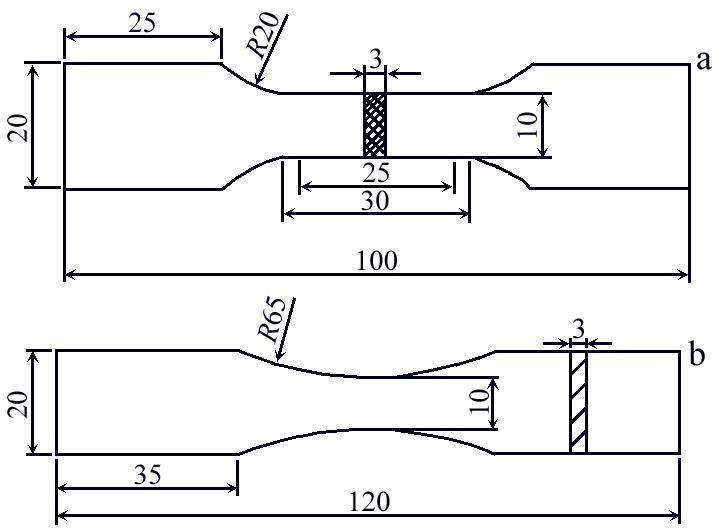

In this work, the influence of warm rolling deformation degree on the microstructure evolution and high temperature (760 ℃) mechanical properties of a novel Ni-based superalloy were investigated by EBSD, SEM, TEM and quasi-static high temperature tensile tests. The results show that the reduction of warm rolling can significantly influence the high temperature mechanical properties. The echancement of yield strength, ultimate tensile strength and elongation for high temperature mechanical properties of Ni-based superalloy processed by the warm rolling with the deformation reduction of 10%, compared to that of samples processed by stardard heat treatments, are 230 MPa, 166 MPa, and 4.1%, respectively. Further rolling deformation processing (80%) causes the evident increase (22.5%) of elongation, generating the excellent strength-ductility synergy effect. The results indicate that the increase of strength and ductility can attribute to the transformation of the doformnation mechanism when the tensile test is conducted at 760 ℃. The transition from stacking fault to micro twinning can obtain the high temperature tensile strength-ductility synergy.
In this work, the influence of warm rolling deformation degree on the microstructure evolution and high temperature (760 ℃) mechanical properties of a novel Ni-based superalloy were investigated by EBSD, SEM, TEM and quasi-static high temperature tensile tests. The results show that the reduction of warm rolling can significantly influence the high temperature mechanical properties. The echancement of yield strength, ultimate tensile strength and elongation for high temperature mechanical properties of Ni-based superalloy processed by the warm rolling with the deformation reduction of 10%, compared to that of samples processed by stardard heat treatments, are 230 MPa, 166 MPa, and 4.1%, respectively. Further rolling deformation processing (80%) causes the evident increase (22.5%) of elongation, generating the excellent strength-ductility synergy effect. The results indicate that the increase of strength and ductility can attribute to the transformation of the doformnation mechanism when the tensile test is conducted at 760 ℃. The transition from stacking fault to micro twinning can obtain the high temperature tensile strength-ductility synergy.
2023, 52(8):2885-2892.
DOI: 10.12442/j.issn.1002-185X.20220656
Abstract:
The evolution of grain structures, γ" strengthening phases and carbides of FGH113A (WZ-A3) alloy during long-term aging treatment at 760 ℃ and 815 ℃ were studied by means of Optical Microscope (OM), Scanning Electron Microscope (SEM), and Energy Dispersive Spectrometer (EDS) and the effect of long-term aging on the tensile properties of the alloy was analyzed. The results show that the long-term aging at 760℃ and 815℃ has no significant effect on grain size and grain morphology of the alloy. After long-term aging at 760℃, the size and morphology of the γ" strengthening phases have no obvious effect, but after long-term aging at 815℃ for 440h, the γ" phases begin to grow and the morphology changes from quasi-cubic to quasi-spherical. After long-term aging at 760℃ for 2020h, the carbides have changed from dispersed granular particles to aggregated at grain boundaries. After long-term aging at 815℃ for 440h, needle-like carbides begin to precipitate in the grains. After 2020h, granular carbides are enriched at the grain boundaries and form chains, at the same time, the needle-like carbides precipitated in the grains further increased. Under the tensile tests of 704°C and 760°C, the tensile strengths of the alloy during long-term aging treatment 760°C/440h and 760°C/2020h were equivalent, but the yield strengths increased slightly after 2020h; the tensile properties of the alloy show similar discipline at 815 long-term aging. The key reasons for the better tensile strength stability of the alloy were attributed to the stable grain structures and the pinning effect of grain boundary carbides. The new nickel-based powder superalloy FGH113A exhibits excellent stability under long-term aging at 760°C and 815°C.
The evolution of grain structures, γ" strengthening phases and carbides of FGH113A (WZ-A3) alloy during long-term aging treatment at 760 ℃ and 815 ℃ were studied by means of Optical Microscope (OM), Scanning Electron Microscope (SEM), and Energy Dispersive Spectrometer (EDS) and the effect of long-term aging on the tensile properties of the alloy was analyzed. The results show that the long-term aging at 760℃ and 815℃ has no significant effect on grain size and grain morphology of the alloy. After long-term aging at 760℃, the size and morphology of the γ" strengthening phases have no obvious effect, but after long-term aging at 815℃ for 440h, the γ" phases begin to grow and the morphology changes from quasi-cubic to quasi-spherical. After long-term aging at 760℃ for 2020h, the carbides have changed from dispersed granular particles to aggregated at grain boundaries. After long-term aging at 815℃ for 440h, needle-like carbides begin to precipitate in the grains. After 2020h, granular carbides are enriched at the grain boundaries and form chains, at the same time, the needle-like carbides precipitated in the grains further increased. Under the tensile tests of 704°C and 760°C, the tensile strengths of the alloy during long-term aging treatment 760°C/440h and 760°C/2020h were equivalent, but the yield strengths increased slightly after 2020h; the tensile properties of the alloy show similar discipline at 815 long-term aging. The key reasons for the better tensile strength stability of the alloy were attributed to the stable grain structures and the pinning effect of grain boundary carbides. The new nickel-based powder superalloy FGH113A exhibits excellent stability under long-term aging at 760°C and 815°C.
